Earth Ground Resistance Insulation Tester

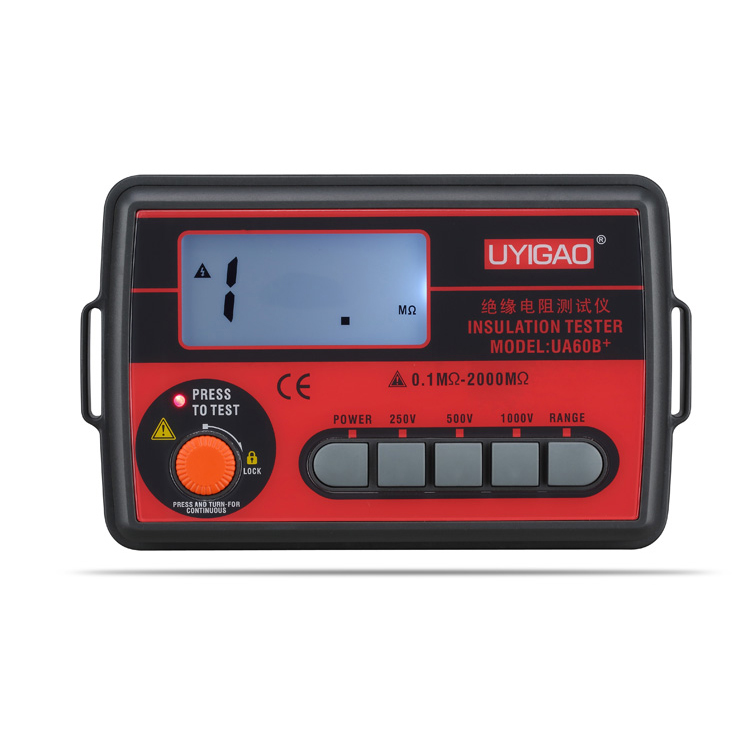

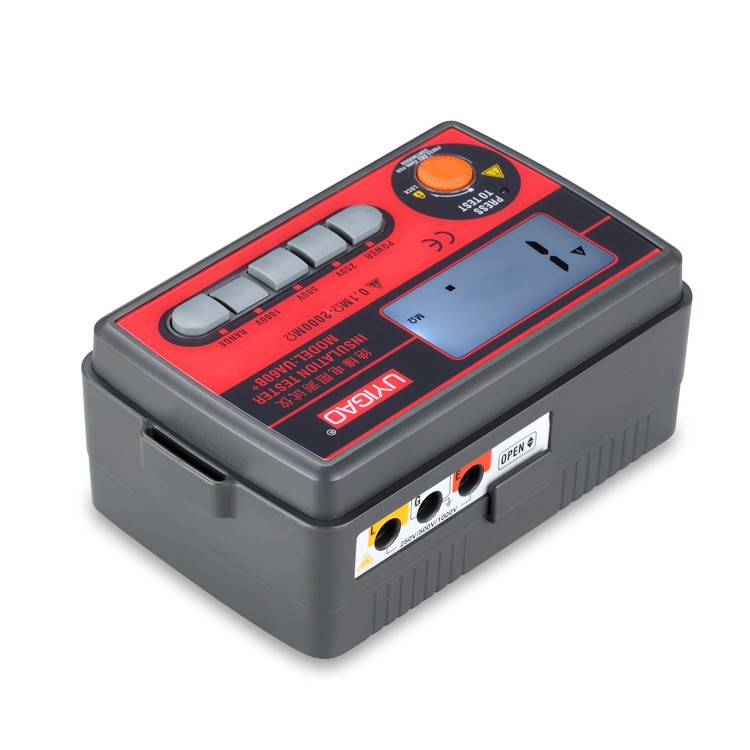

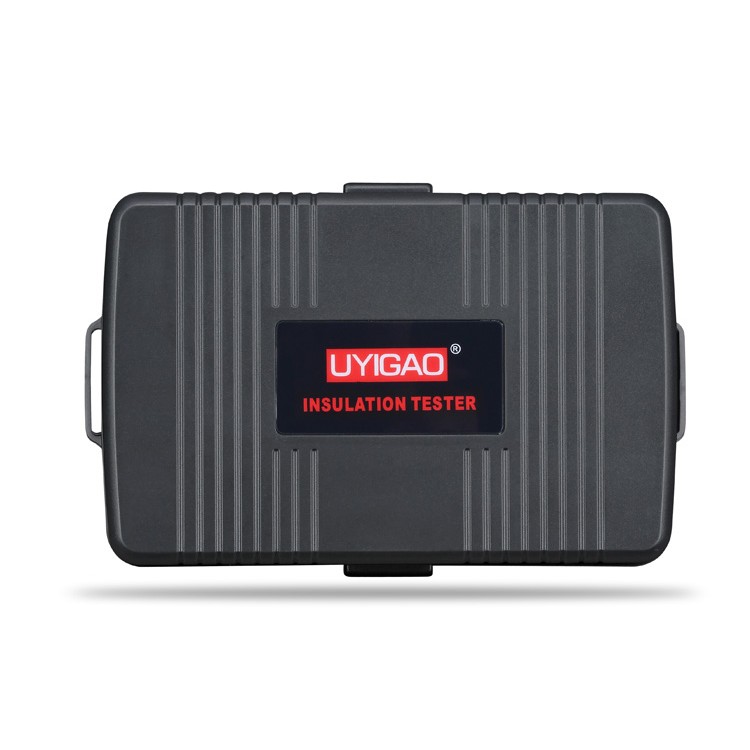

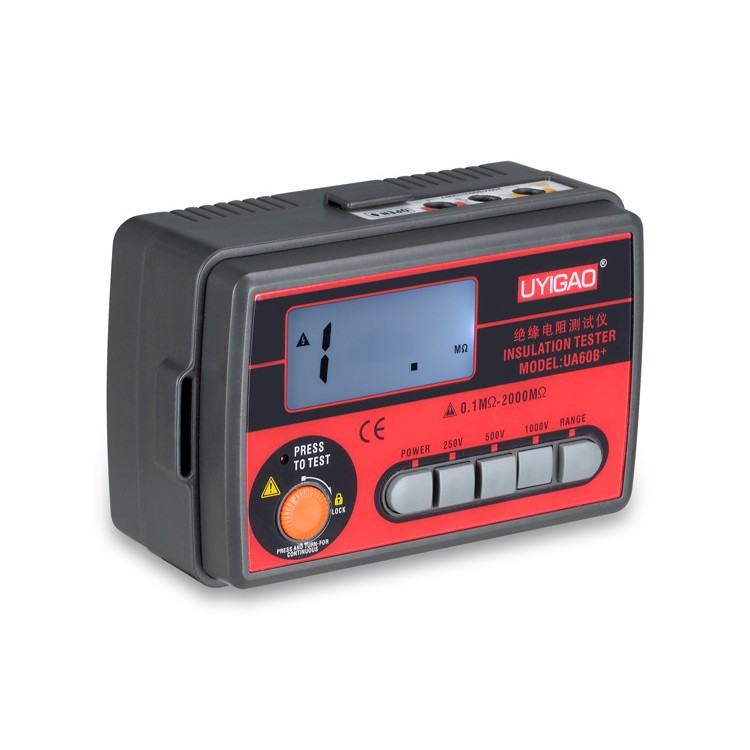

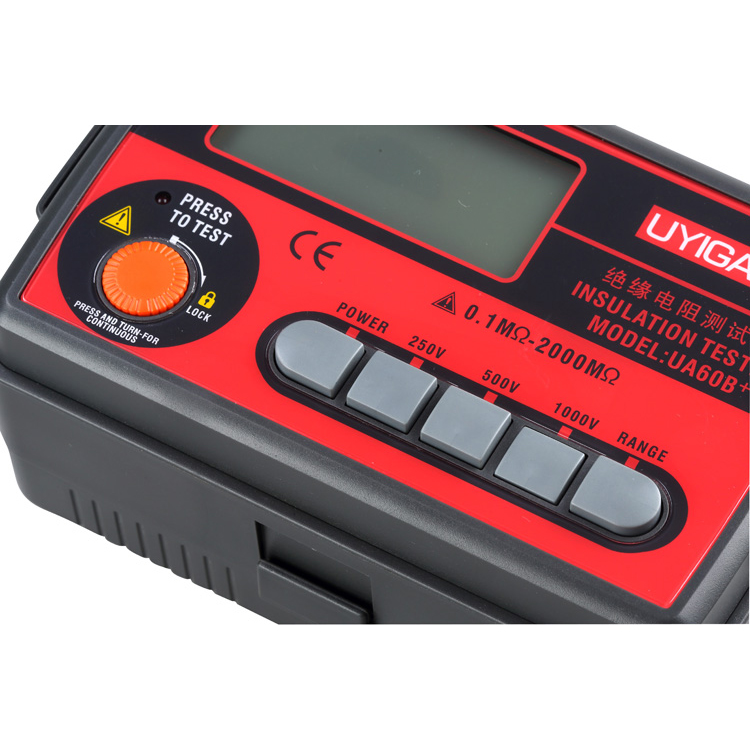

UA60B 1KV Professional Insulation Resistance meter Digital Megger Tester

UA60B 1KV Professional Insulation Resistance meter Digital Megger Tester

Professional Insulation Resistance Tester

Key Specifications/Special Features:

  • Professional insulation resistance tester

  • Voltage test: 250V ±10%, 1000V ±10%

  • Basic accuracy: ± (4% ±2)

Basic functionUA60B+

Voltage test250V ±10%500V ±10%1000V ±10%
Range0.1-20mΩ
20-500mΩ
0.1-50mΩ
50-1000mΩ
0.1-100mΩ
100-2000mΩ
Basic accuracy± (4% ±2)± (4% ±2)± (4% ±2)
Shot-circuit current1.8mA1.8mA1.6mA
Mid resistance2mΩ2mΩ5mΩ

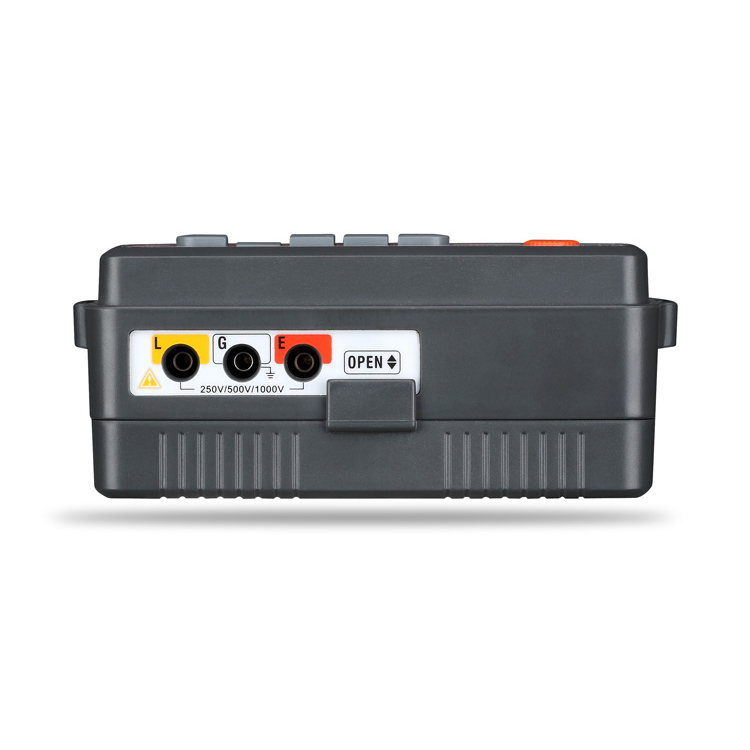

Jack locationL, EL, EL, E
750V/AC voltage
low voltage warning


Alarmright light

Overload protection
Units in display
Automatic turn-off


Max display1999

Operation temperature0 to 40°C

RH30-85% RH

Over range indicationMaximum value with symbol 1

Size175x110x70mm

Weightabout 720g (includes battery)

Power9V (6 x 1.5V, 5th battery)
