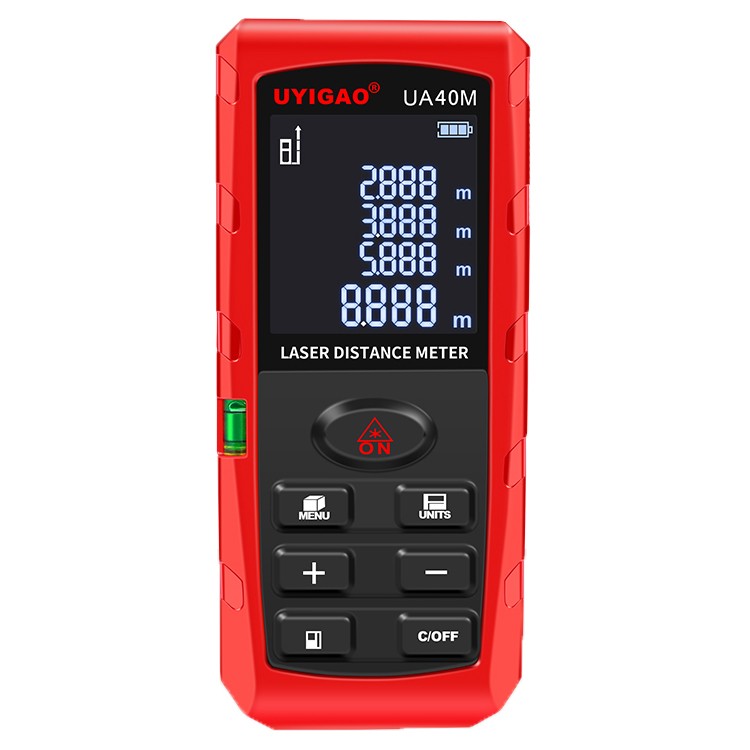

UA40M Laser Distance Meter

ua40m Laser Rangefinder Distance Meter Laser Range Finder High Precision Measurement Portable Handheld Laser distance meter

40m laser distance meter

Specification
Measuring Accuracy :±1.5mm
Measuring Unit:m,ft,in
Laser type:620690nm
Single Measurement time:0.25s
Operating Temperature:0~+40
Storage Temperature:20~+65℃
Batteries:AAA(Alkaline).2x1.5V
Measurements Per Battery Set:>8000
Weight (without Batteries):Approximately 82g

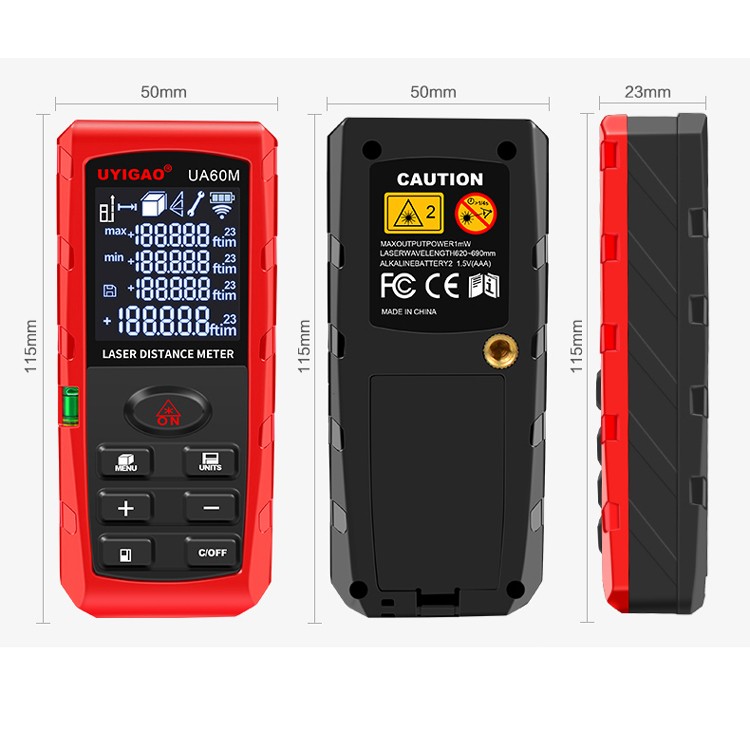

Dimensions (L×W×H):115x50X23mm
Laser auto switch off:30s
Instrument Auto. Switch off:180s



NOTE
Please DO NOT stare into beam at any time when operating this product!
Please avoid kids to use the meter

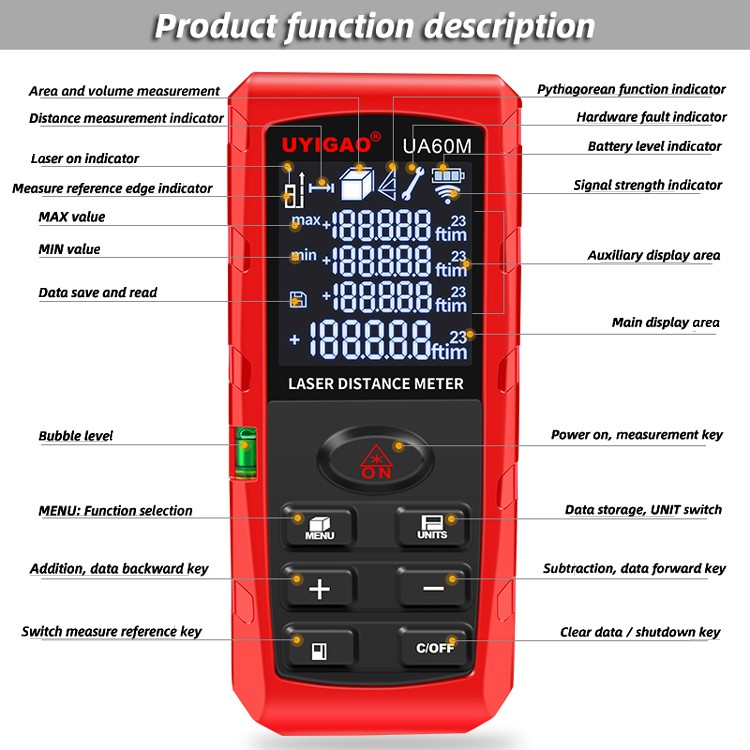

Features
Laser class: Ⅱ class,<1mW

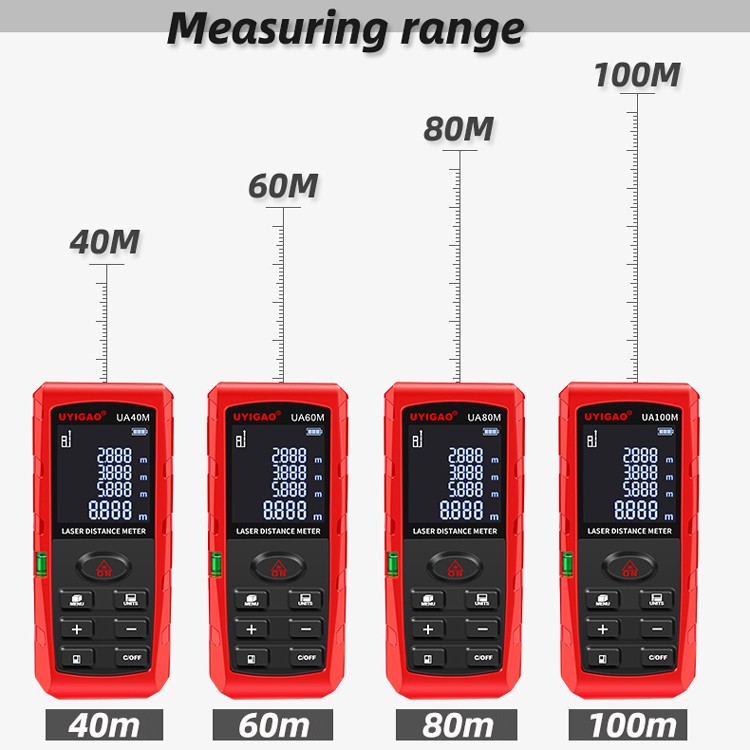

Laser range:0.05m --40m/131ft
Single measurement
Max min measurement
Continuous measurement
Area / volume / Pythagoras
Plus and minus
Metre /ft/in switch
Measuring reference
Buzzer indicator
History data records:99 Groups
Data clean up
Error message code
Battery indicator
Digital leave(angle measuring)



Package Content:
1×40M Laser Distance Meter
1×User Manual
1×Holding Rope
1×One Years Warranty



Basic functionrange
Range0-40m
Accuracy (typical value)±2mm
Unitm/in/ft
Laser classclass 2 (Ⅱ)
Laser power<1mW
Laser wavelength635nm
Indication of intensity
Area
Volume
Indirectpythagorea
Single/continuous measurement
Add and subtract measurement
Max/Min
Multiple lines display4 lines
Date store20 sets
Reference edgetop, middle, bottom, pole
Backlightwhite
Buzzer function
Error report function
Battery life>5000
Power displayfull, medium, low
Tripod screw
Dustproof/waterproof rateIP54
Store temperature-20 to 65°C
Working temperature-10 to 40°C
Batterytype AAA 2*1.5V
Body colorsred+ gray
Weight178g (incl battery)
Body size115*52*33mm
