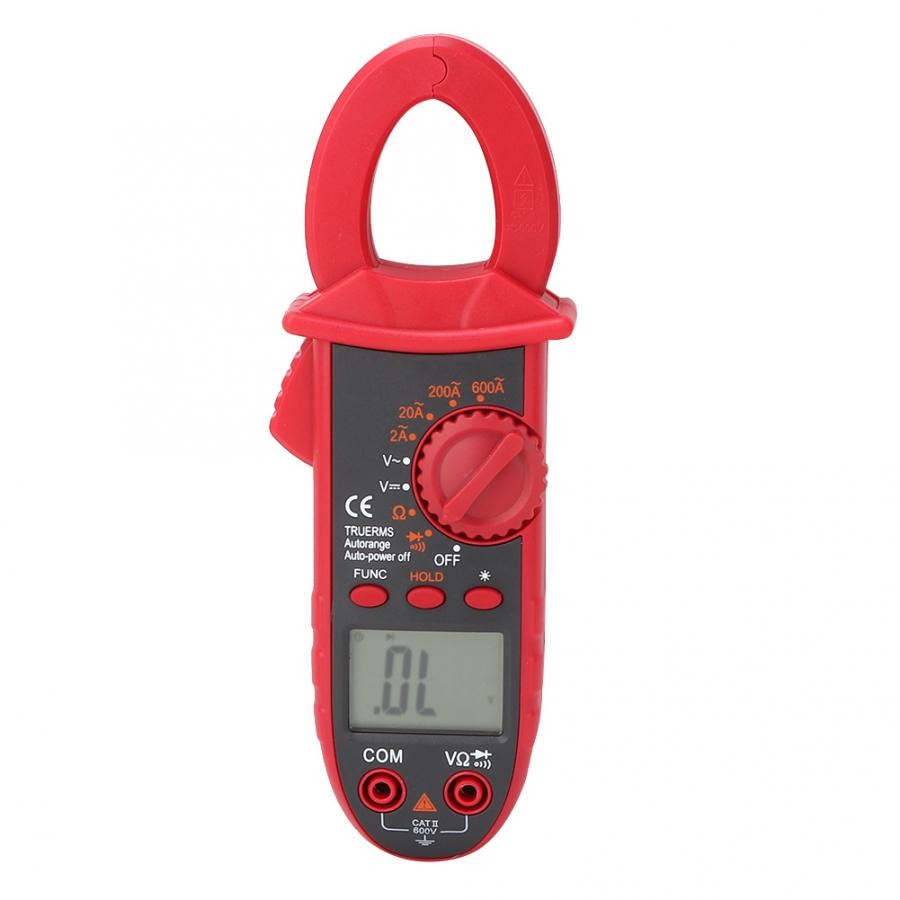

ua3268c true RMS clamp meter

ua3268c Clamp Meter Professional Multimeter Digital TRMS Auto-Ranging 6000 Counts Temperature Capacitance Voltage Tester

UA3268C clamp meter Profsional multimeter Digital TRMS Auto-Ranging 6000 Counts Temperature Capacitance Voltage Tester



√True-RMS clamp meter: This multimeter can accurately measure AC Current, AC/DC Voltage, Frequency or Duty Cycle, Resistance, Capacitance and also provides Diode, Continuity and Temperature tests. True RMS for accurate measurements on non-linear loads. Easy to use for labs factories and household.

√Additional Features: data hold, max reading, and an easy-to-read large LCD

√Easily Carrying: comes with a handy carrying pouch, perfect for use while you're on the go

√Sleep Mode: automatically enters sleep mode after 15 minutes of inactivity for energy conservation

√LowZ & LPF: Low input impedance helps prevent false readings due to ghost voltage. Low Pass Filter (LPF) for accurate measurement of variable frequency drive signals when measuring motors and transformer. To measure the current you need to clamp the meter around one of the wires and not the whole power cord.

√NCV Detection Function: Non-contact voltage detection effectively check electrical status through measuring EM field intensity without touching any wires; The NCV button lies on the right side. Simply place your thumb on it and push.

√Safety Guarantee: Safety standard IEC 61010-1, CAT III 600V. Double insulation.


FunctionRangeBasic Precision
DC voltage600V ± (1.0%+3)
AC voltage600V± (1.5%+5)
AC current2A
20A
200A
600A
± (3%+10)
± (2.5%+5)
± (2.5%+5)
± (2.5%+8)
Resistance2KΩ
2000KΩ
± (1.2%+3)
Special features

RangeManual
On-off buzzer V
Diode test V
Data holdV
Auto power offX
BacklightWhite
Low battery display<2.7V
Input impedance≥10MΩ
Maximum display 1999
LCD size24.3x34.6mm
Clamp opening size28mm
Features description

Product weight 160g
Product size 185 * 25*51 mm
Body colorSteel gray and red
Standard accessoriesTest leads, battery, AAA 1.5V Battery
Standard packageColor box, manuals







UA3268C pocket universal digital clamp meter, multimeter, ammeter, measure capacitance, temperature and frequency.

Display: 3 1/2 digit LCD (1999 count)

With backlight

Data Hold

Maximum hold

"FUNC" button

Over-range

Low battery indication

Automatic shutdown

---------------------------------------------------------------------------------------------------

AC current: 4A/40A / 400A                           ± (2% rdg ± 12dgt)

AC voltage: 4V40V400V-600V                       ± (1.0% rdg ± 5dgt)

DC Voltage: 400mV/4V/40V/400V/600V     ± (0.8% rdg ± 1dgt)

DC Resistance: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ  ± (1.0% rdg ± 2dgt)

Temperature: -20 C - + 750 C (-4 F - + 1400 F) ± (3% rdg ± 5dgt)

Capacitance Test: 40nF / 400nF / 4uF / 100uF ± (4.0% rdg ± 3dgt)

Test frequency: 10HZ ~ 1MHZ   ± (1.0% rdg ± 2dgt)

Duty ratio: 0.1% - 99.9%

Diode test

Conduction test

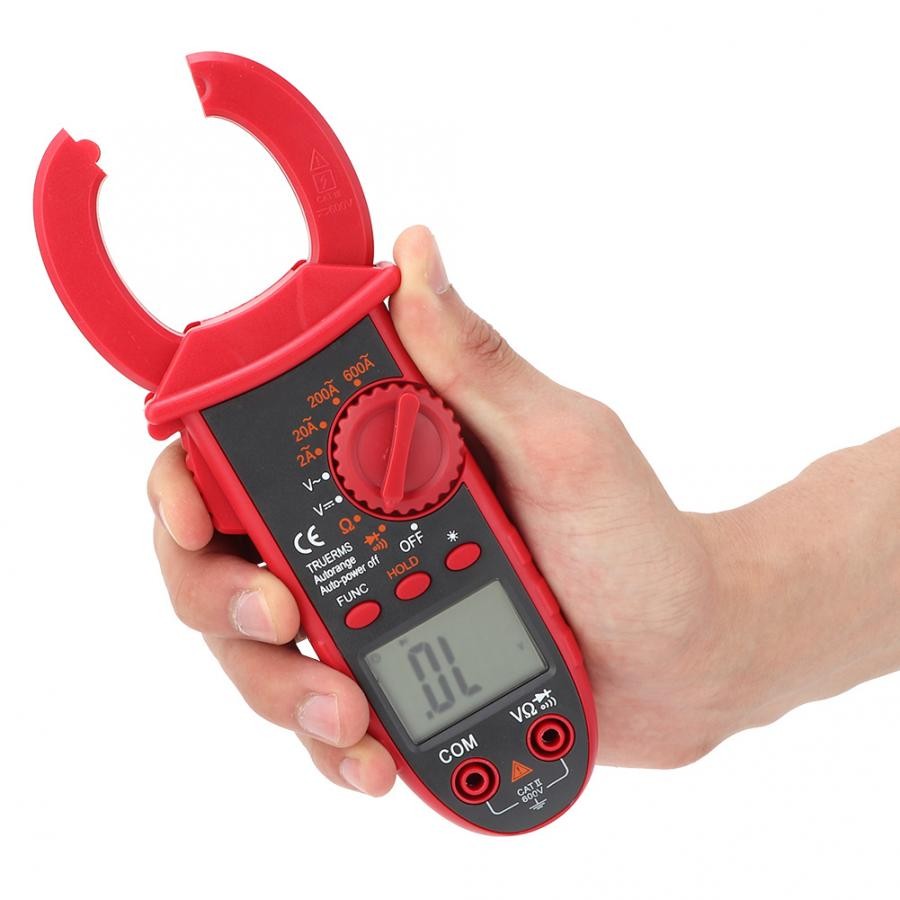

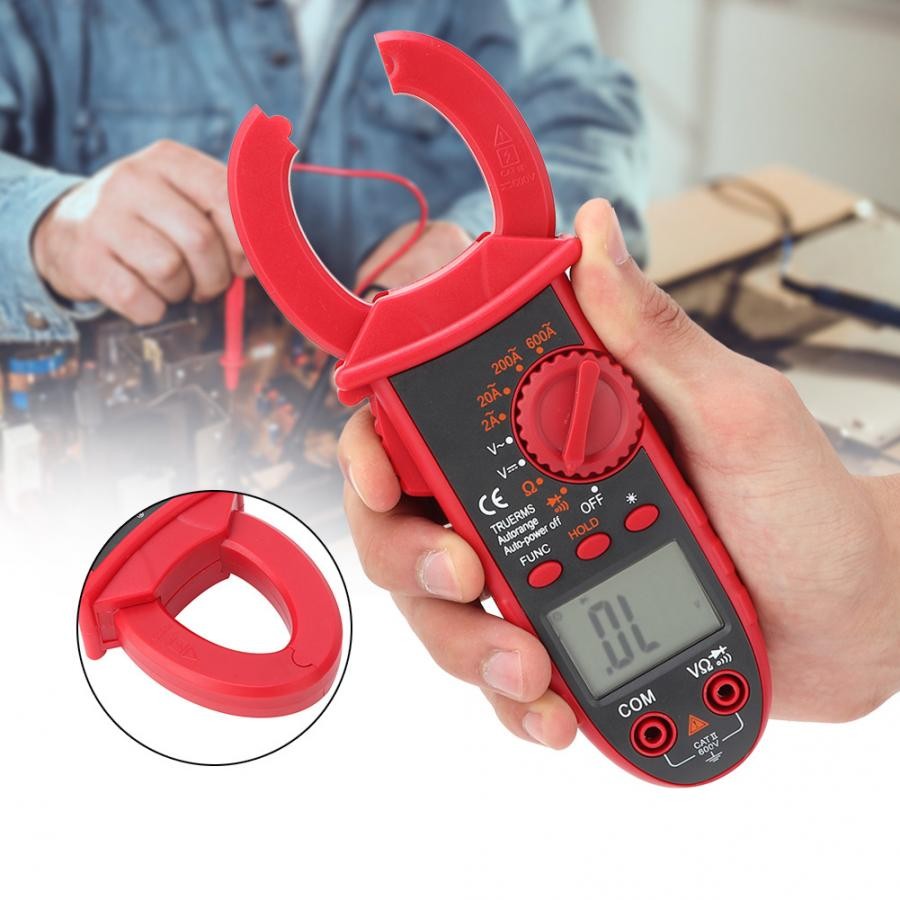

Jaw opening product size:> 28mm

LCD size:24.3*34.6mm

Color:gray

Power: 1.5V AAA battery * 2(No battery)

Size: 185 (L) * 51 (W) * 25 (H);

Weight: 165g

Safety Standards: CAT III 600V
