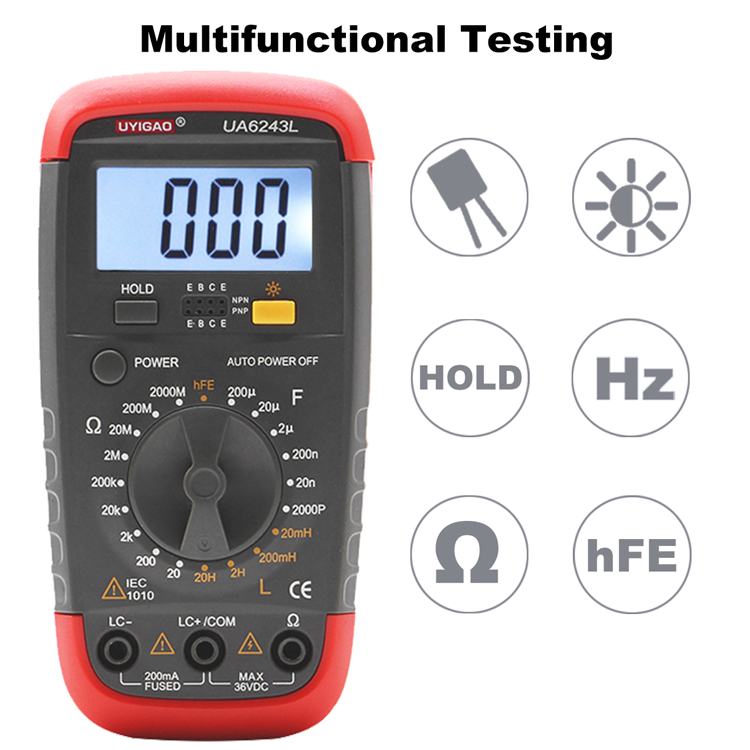

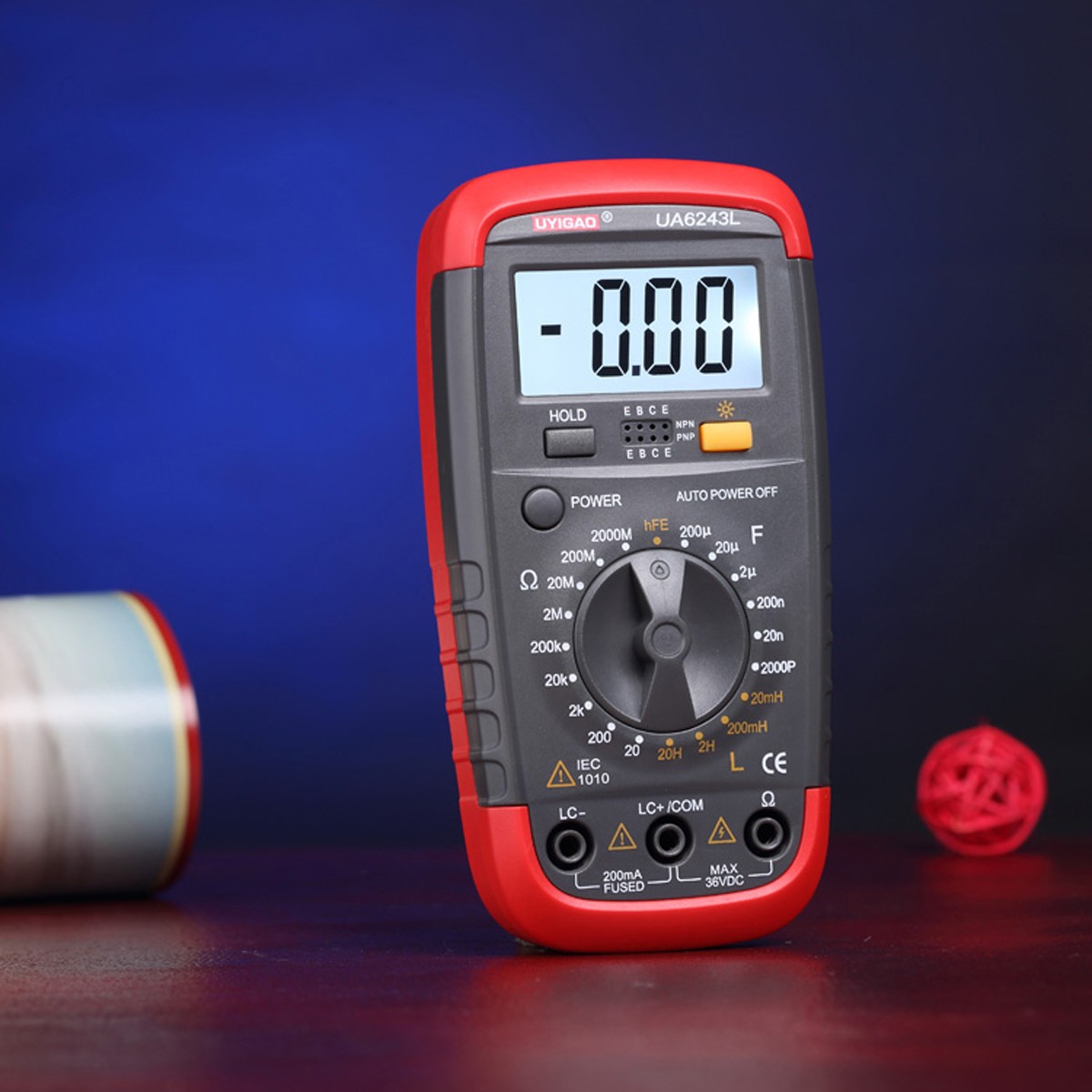

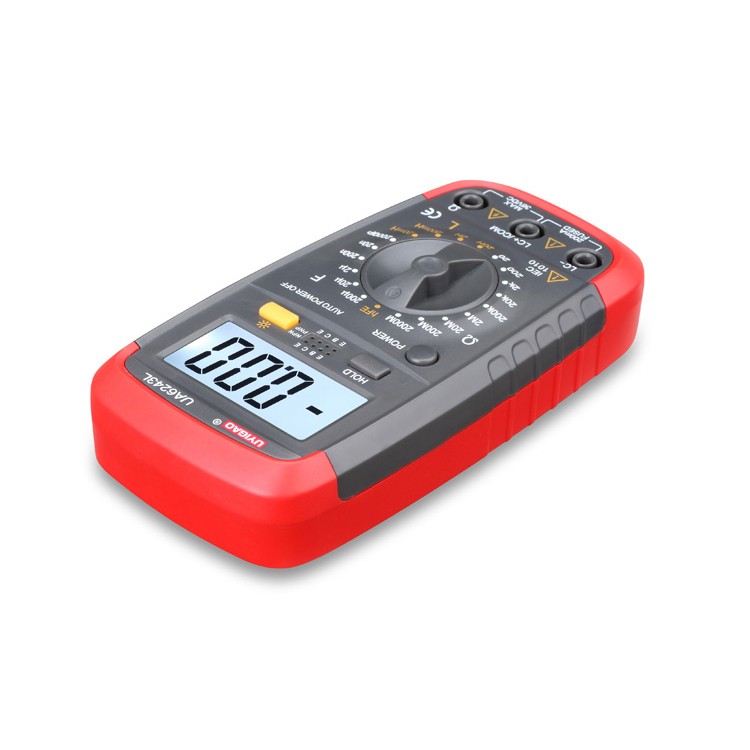

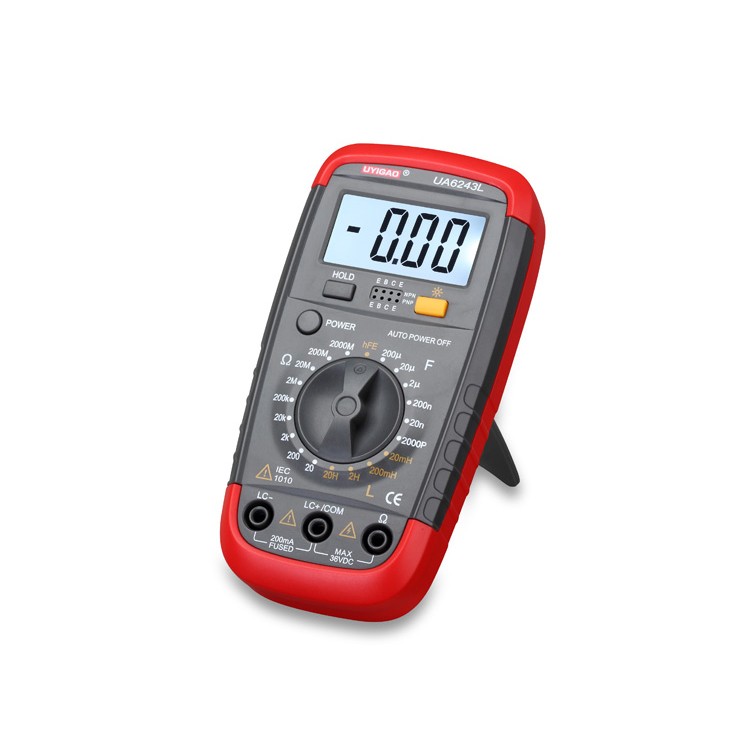

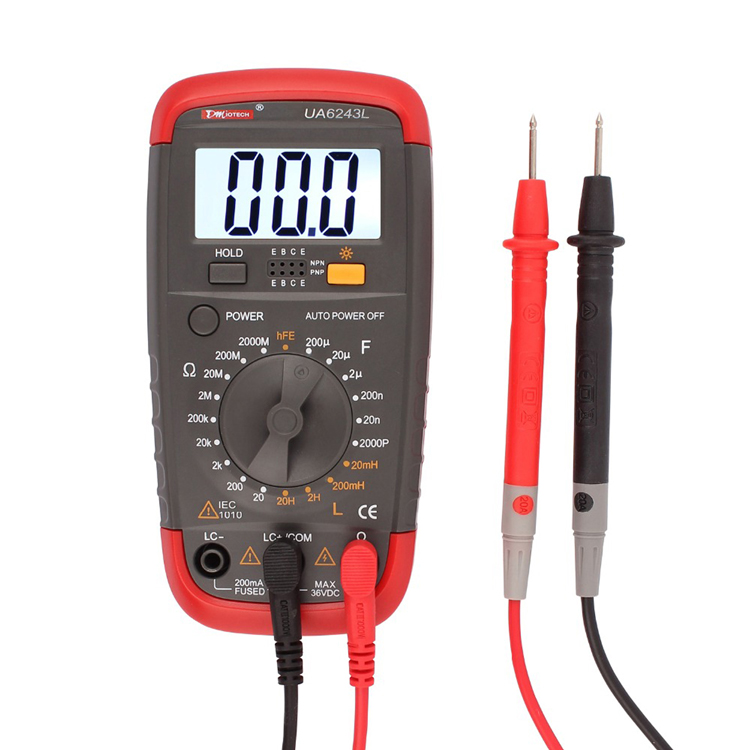

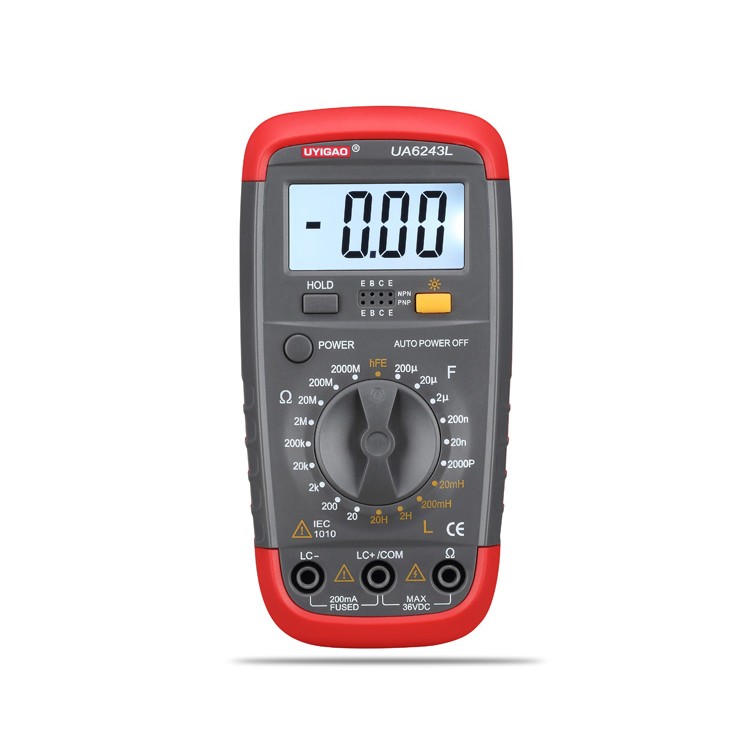

200Mohm 200uF 20H Digital LCD Capacitance Inductance LCR Multimeter UA6243L
UA6243L inductance capacitance meter is a kind of stable performance, safe and reliable, high precision of handheld 3 1/2 a manual switch range digital instrument

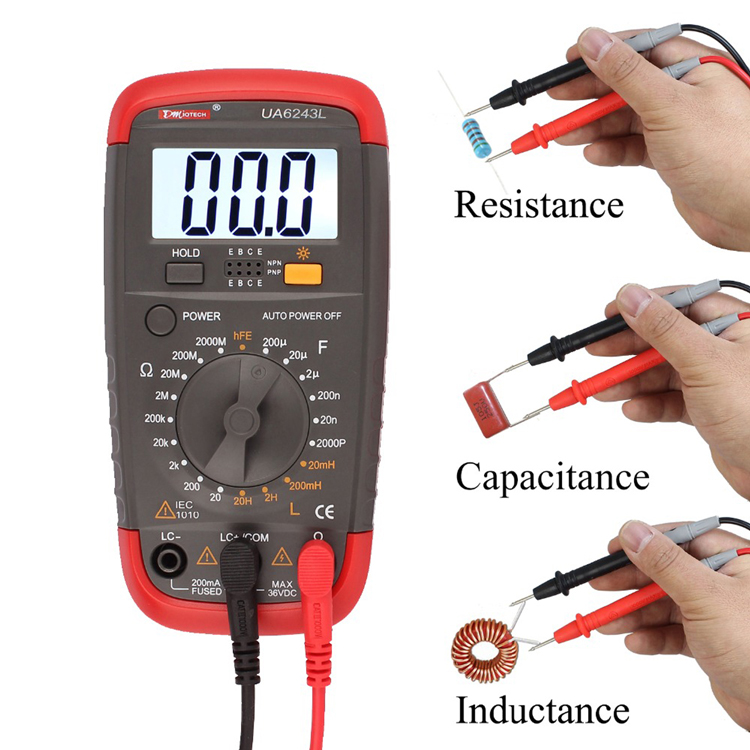

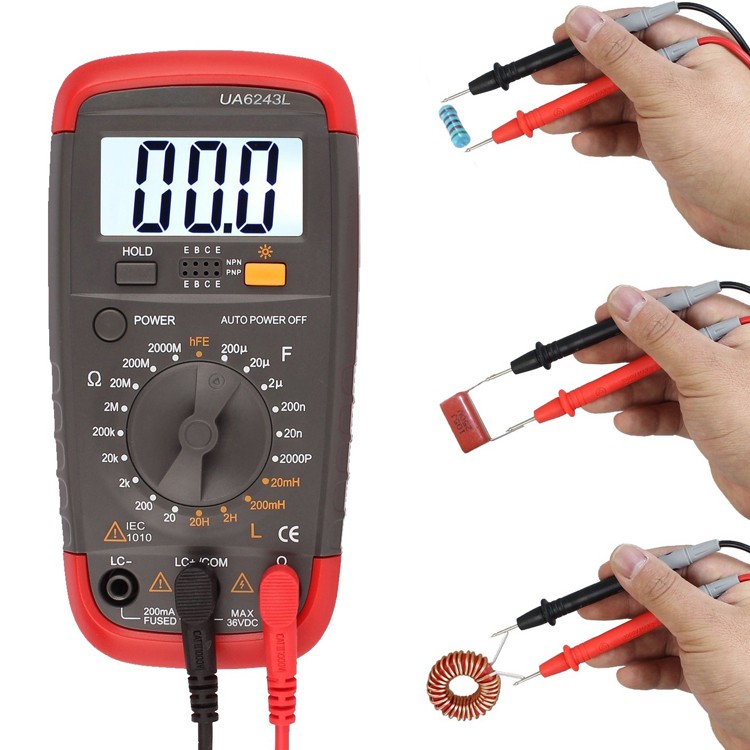

Can be used to measure the capacitance, resistance, triode magnification beta and other functions
Apply to electronic experiment, production lines, resistance of the pits and teaching, or inductance test, it is an ideal repair tool for users
| Basic function | Range | Accuracy |
| Resistance | 20Ω/2000Ω/20KΩ/200KΩ/20MΩ/200MΩ | ±(1.0%+20) |
| Capacitance | 2000PF-200uF | ±(2.5%+20) |
| Inductance | 20mH-20H | ±(2.5%+25) |
| Special function | ||
| Maximum display | 1999 | |
| Range choice | manual range | |
| Low battery display | √ | |
| Auto power off | √ | |
| Data hold | √ | |
| Function Protection | V | |
| Shock Proof Protection | V | |
| Backlight | √ | |
| General characteristics | ||
| Power | 9V (6F22) x1 | |

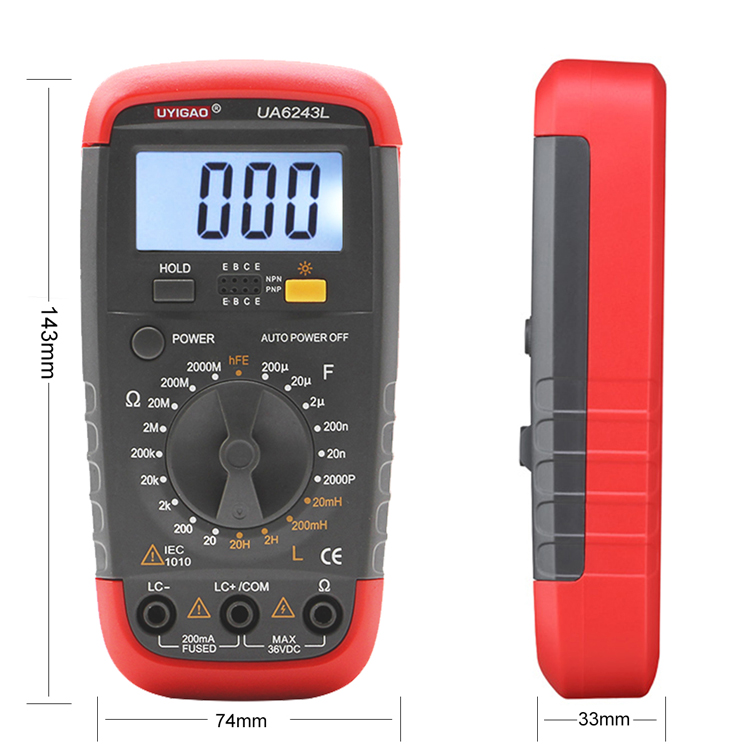

| Fuselage size | 143x74x35mm | |
| Fuselage weight | about 176g |
