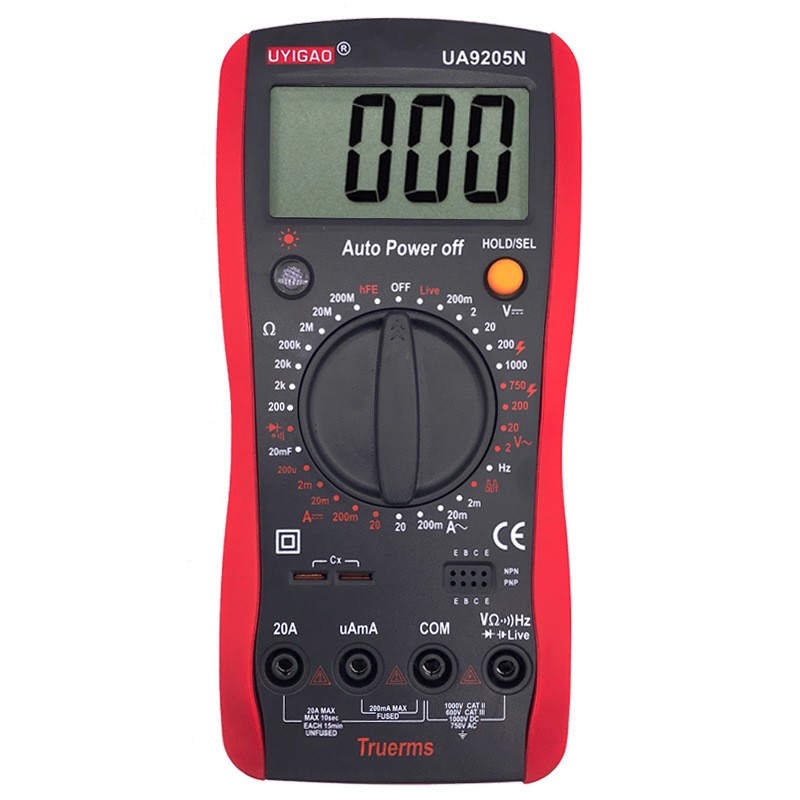

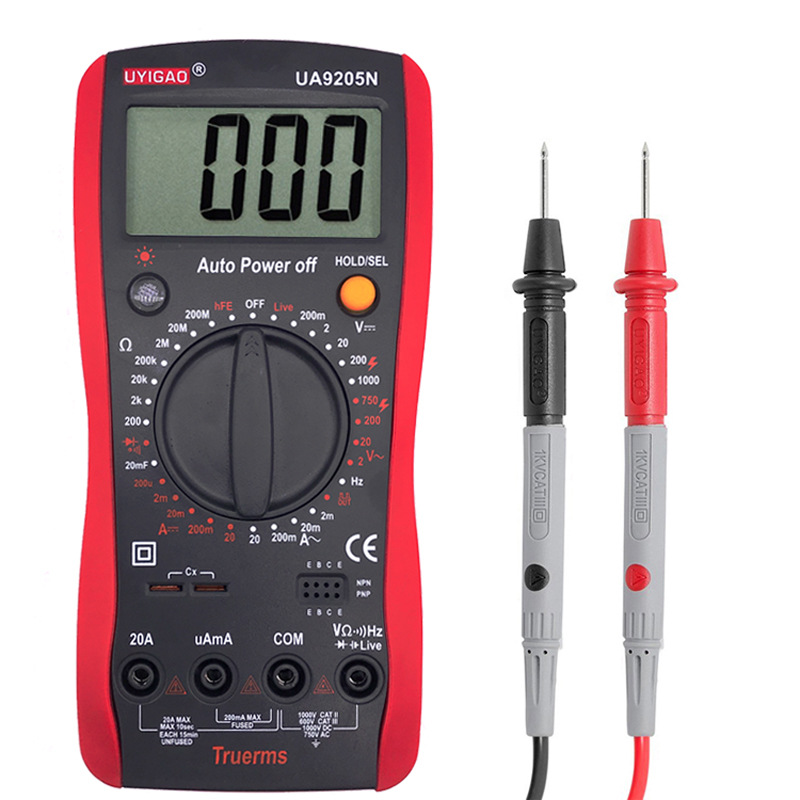

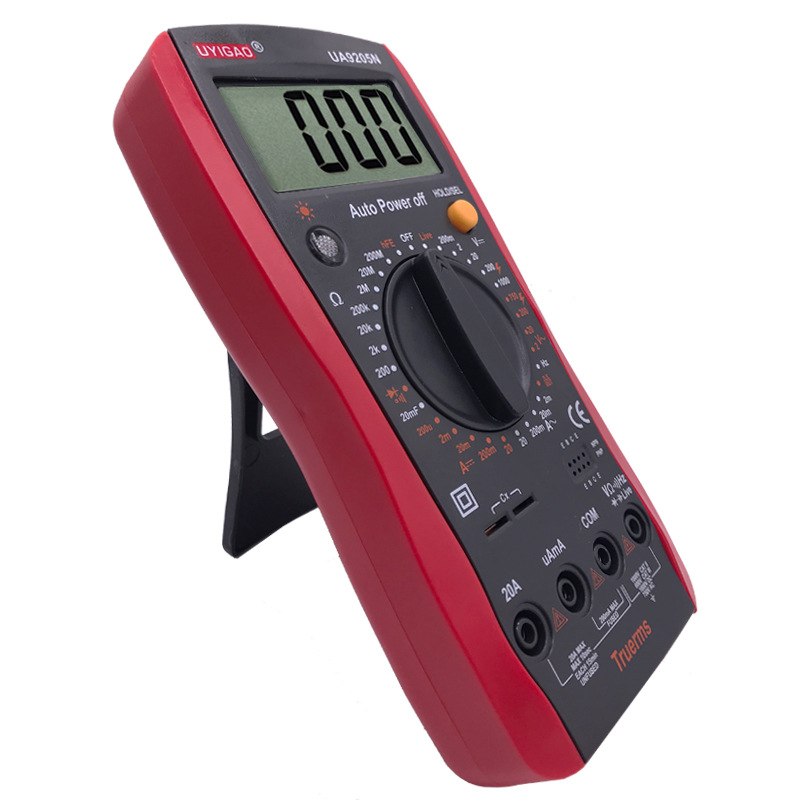

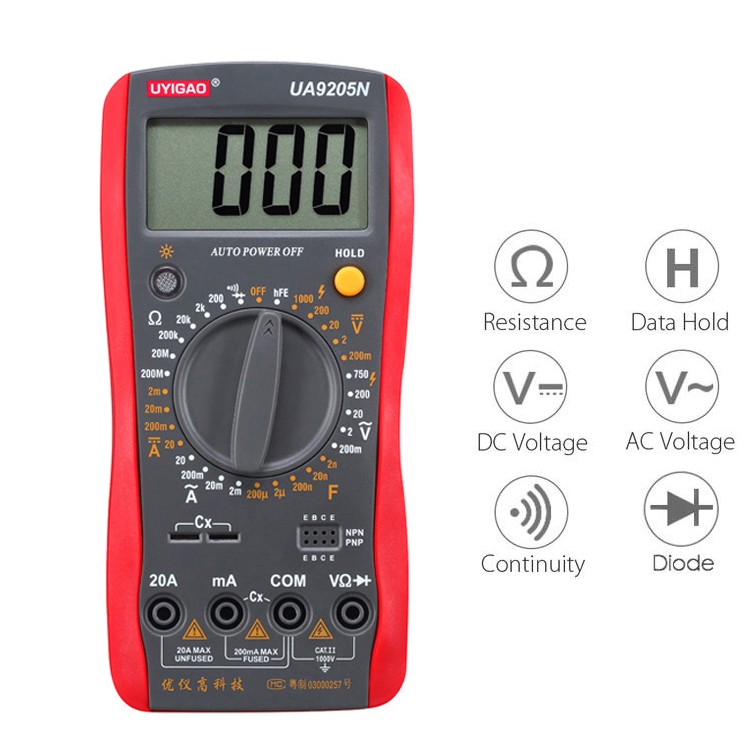

UA9205N Digital Multimeter

UA9205N Digital Multimeter Voltmeter Ohmmeter Ammeter Capacitance DC AC Tester
Large screen digital multimeter; multi-range automatic shutdown Value practical
COMS integrated circuit, the principle of double integral A / D conversion
Automatic zero, auto-polarity selection
Size:185 x 90 x 35mm,Weight:300g,compact, easy to carry
Power: 1 x 9V neda1604 or 6F22 Battery (Not include)

UA9205N Brand New Portable Mini Digital LCD multimeter Meter Tester DC/AC Voltage Current Resistance Capacitance Ohmmeter Ammeter Diode Triode Measurement

Features:
UA9205N large screen digital multimeter multi-range automatic
shutdown Value practical.
UA9205N digital multimeter is an easy to operate, accurate readings,
full-featured, compact, easy to carry, use battery-powered handheld
large screen LCD multimeter, UA9205N digital multimeter for three and
a half, the table can be used to measure DC voltage / current,
AC voltage / current, resistance, capacitance test, diode test,
transistor HFE measurement and circuit off. For engineering design,
laboratory, pilot production, factory affairs, field operations and industrial
maintenance use.
--Full-featured the wrong stalls as well as over-range protection.
--Anti-burn performance better automatic shutdown function.
--COMS integrated circuit, the principle of double integral A / D conversion.
--Automatic zero, auto-polarity selection.
--Parameter indicators.
--Power: 1 x 9V neda1604 or 6F22 Battery (Not include)


Products overview: * Full protection function, high voltage ignition circuit design
* New shockproof, streamlined design, comfortable feel
* Large screen display
* Strong anti-jamming capability

General characteristics:

Basic function

Range

Accuracy

DC voltage
AC voltage

200mV/2V/20V/200V/1000V
200mV/2V/20V/200V/750V

±(0.5%+3)
±(0.8%+3)

DC current
AC current

2mA/20mA/200mA/20A
2mA /20mA/200mA/20A

±(0.8%+3)
±(1.0%+3)

Resistance

200Ω/2KΩ/20KΩ/200KΩ
/2MΩ/20MΩ/200 MΩ

±(0.8%+3)

Capacitance

2nF/20nF/200nF/2uF/200uF

±(2.5%+20)

Temperature

x

Frequency

x

Special function



Diode test
Triode testing


Logic level test
Continuity buzzer


Low battery display


Data hold
Auto power off


Function protection


Anti-vibration protection


Input impedance for DCV

10MΩ

Backlight


Sample frequency

60Hz

Operation

Manual range

Maximum display

1999

Display size

63x32mm

Power

9V battery (6F22)
