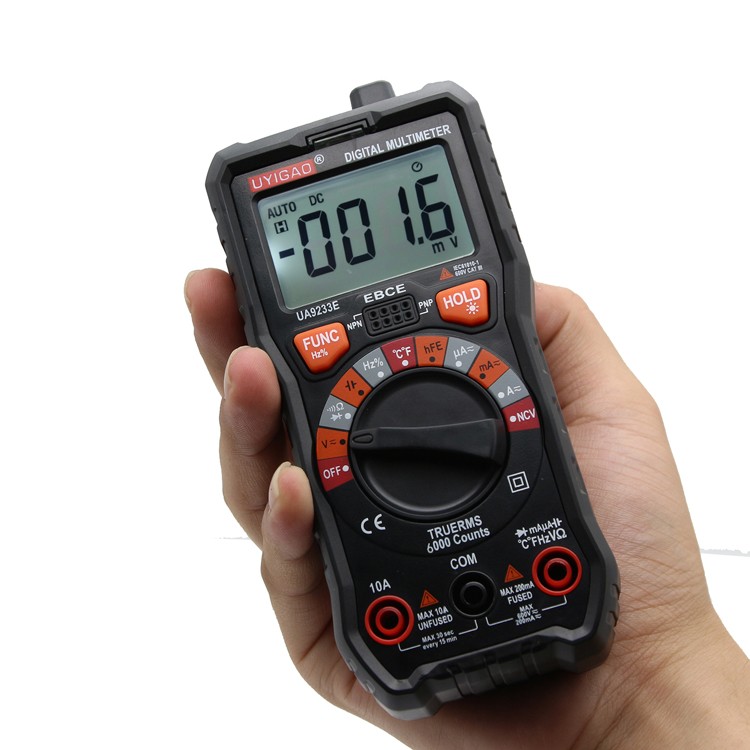

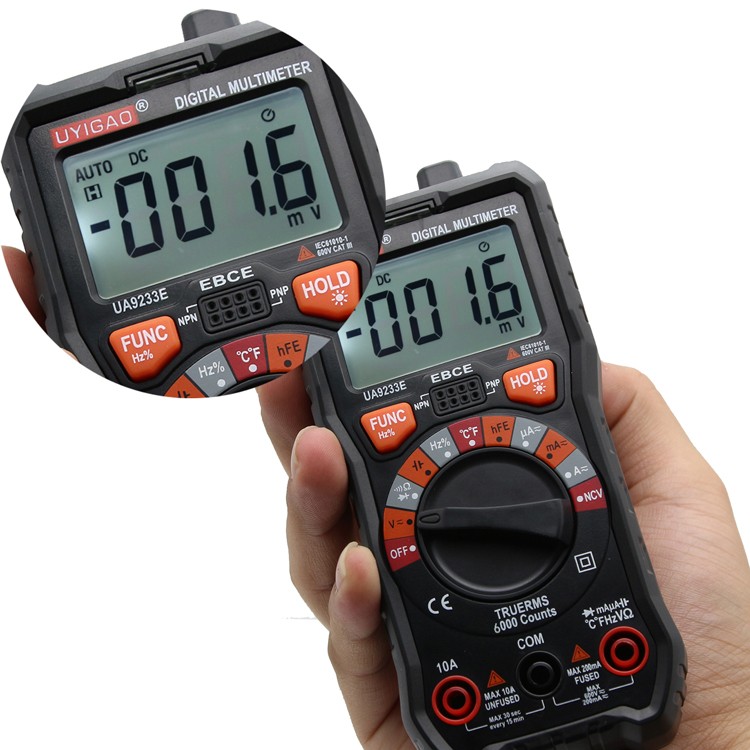

UA9233E Digital Multimeter

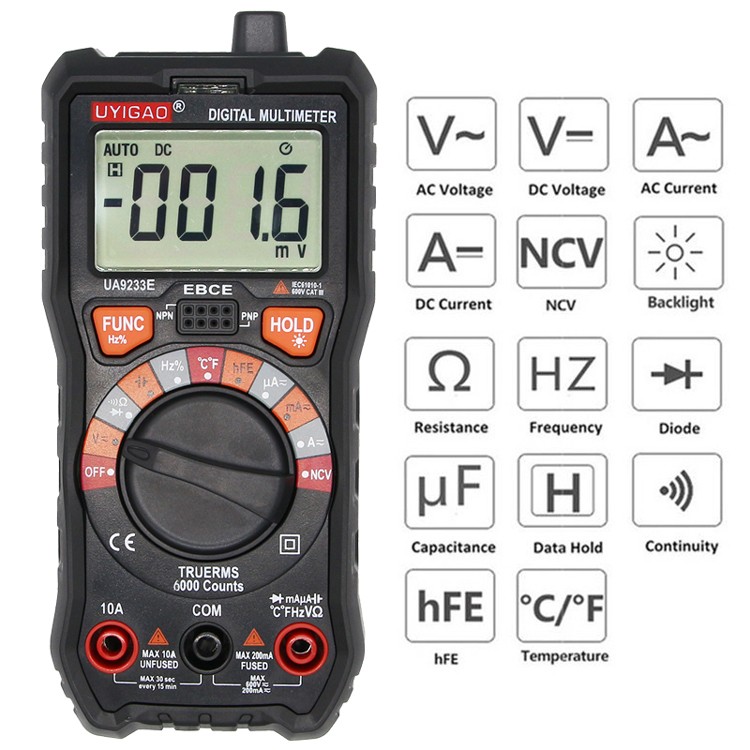

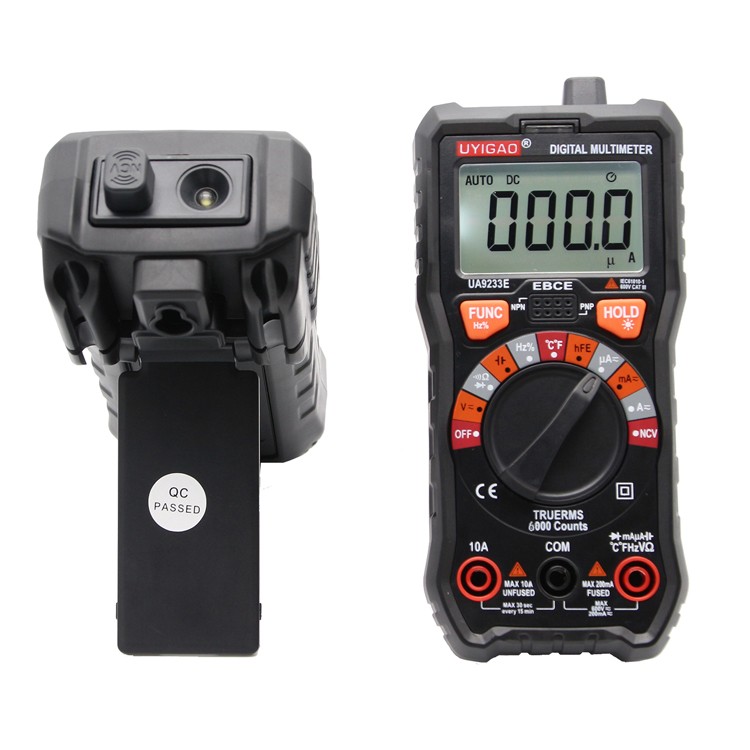

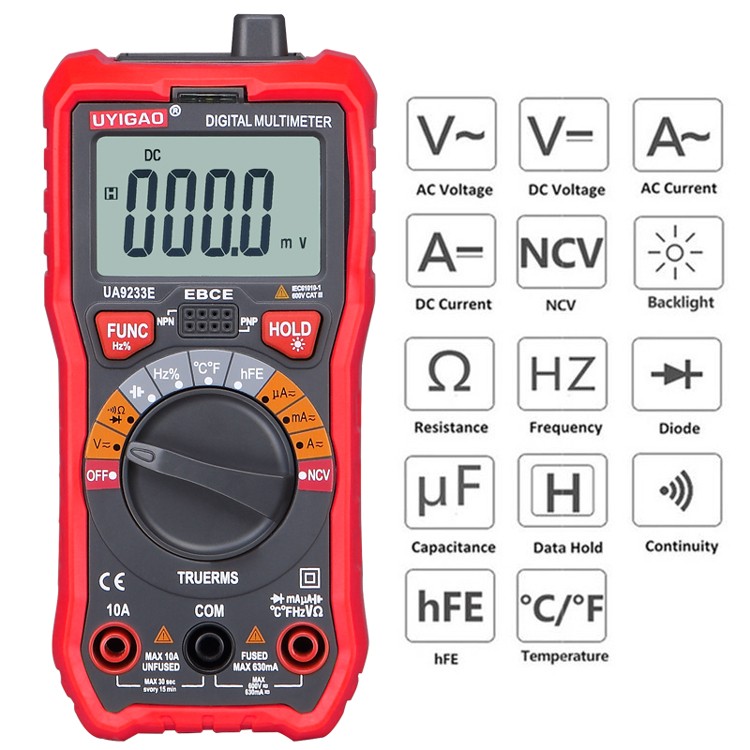

3 5/6 digital multimeter, with LCD display, clear reading, intuitive display, easy operation, can be used to measure DC voltage, AC voltage sine wave true RMS, DC current, AC current sine wave true rms, resistance, capacitance, frequency , duty cycle, diode, continuity test. There are also unit symbol display, data retention, automatic power off and other functions. NCV flashlight lighting

UA9233E AC DC mini digital multimeter with frequency test

Key Specifications/Special Features:

5999 digital multimeter for measuring capacitance, resistance, temperature, TRMS, NCV, torch, 10A AC/DC current, 600V AC/DC voltage

  •  General characteristics:
    1. Display: LCD
    2. Maximum display: 5999, 3 5/6 automatic polarity display and unit display
    3. Measurement methods: double integral A/D conversion
    4. Sampling rate: 3 times /second
    5. Over range display: OL
    6. Low voltage display: display low voltage symbols
    7. Working environment: 0 to 40°C Relative humidity: <80%
    8. Storage environment: -10 to 50°C Relative humidity: <80%
    9. Battery: 6F22 battery 9V

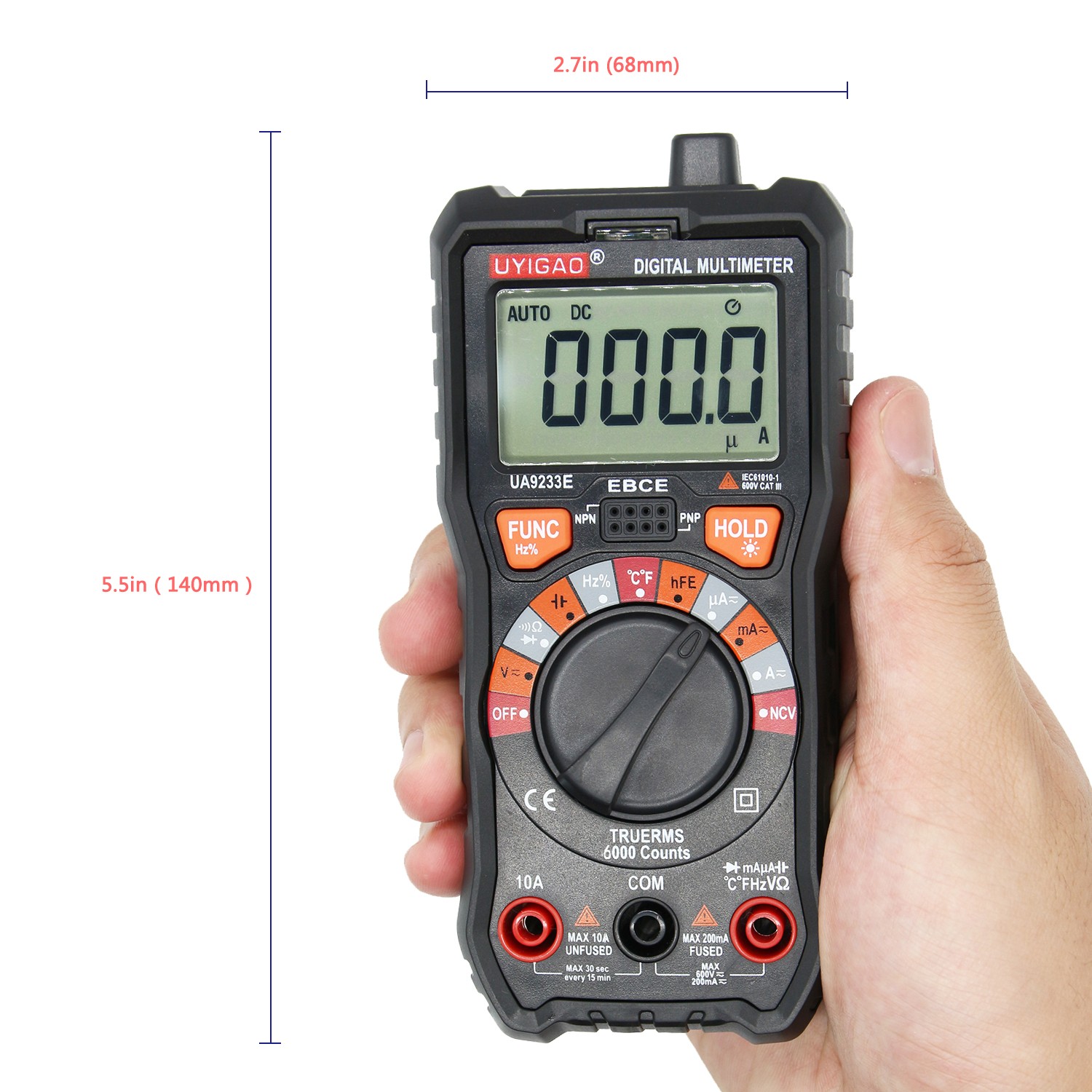

    10. Volume size: 140 x 68 x 49mm
    11. Weight: about 266g (including battery)

Basic functionRangeBasic accuracy
DC voltage6/60/600V± (0.5%+5)6/60V
± (0.8%+5)
: 600V
AC voltage6/60/600V± (0.8%+3d): 6/60V
± (1.0%+10d): 600V
DC current

600uA/6000uA/60mA/

600mA/6A/10A

± (1.5%+10d): 600uA/6000uA/60mA/600mA
± (2.5%+10d): 6A/10A
AC current

600uA/6000uA/60mA/

600mA/6A/10A

± (1.5%+10d): 600uA/6000uA/60mA/600mA
± (2.0%+10d): 6A/10A
Resistance600Ω/6/60/600KΩ
/6/600MΩ
± (0.8%+3d): 600Ω/
   6/60/600kΩ
± (1.2%+3d): 6MΩ/600MΩ
Capacitance

9.999nF/99.99nF/999.9nF/

9.999uF/99.99uF
/999.9uF/9.999mF/99.99mF


± (4.0%+3d): 9.999nF/99.99nF/999.9nF/

9.999uF/99.99uF
/999.9uF
± (5.0%+3d): 9.999mF
not specify: 99.99mF

Temperature-20 to 300°C
301 to 1000°C
-4-600°F
601-1832°F
-20-300ºC: ± (1.0%+4)
301 to 1000°C: ± (1.9%+5)
-4-600°F:± (1.2%+6)
601-1832°F ± (1.9%+6)
Frequency9.999/99.99/999.9Hz
9.999/99.99/999.9kHz
9.999MHz
± (1.0%+3d)
Special function

NCV  test V

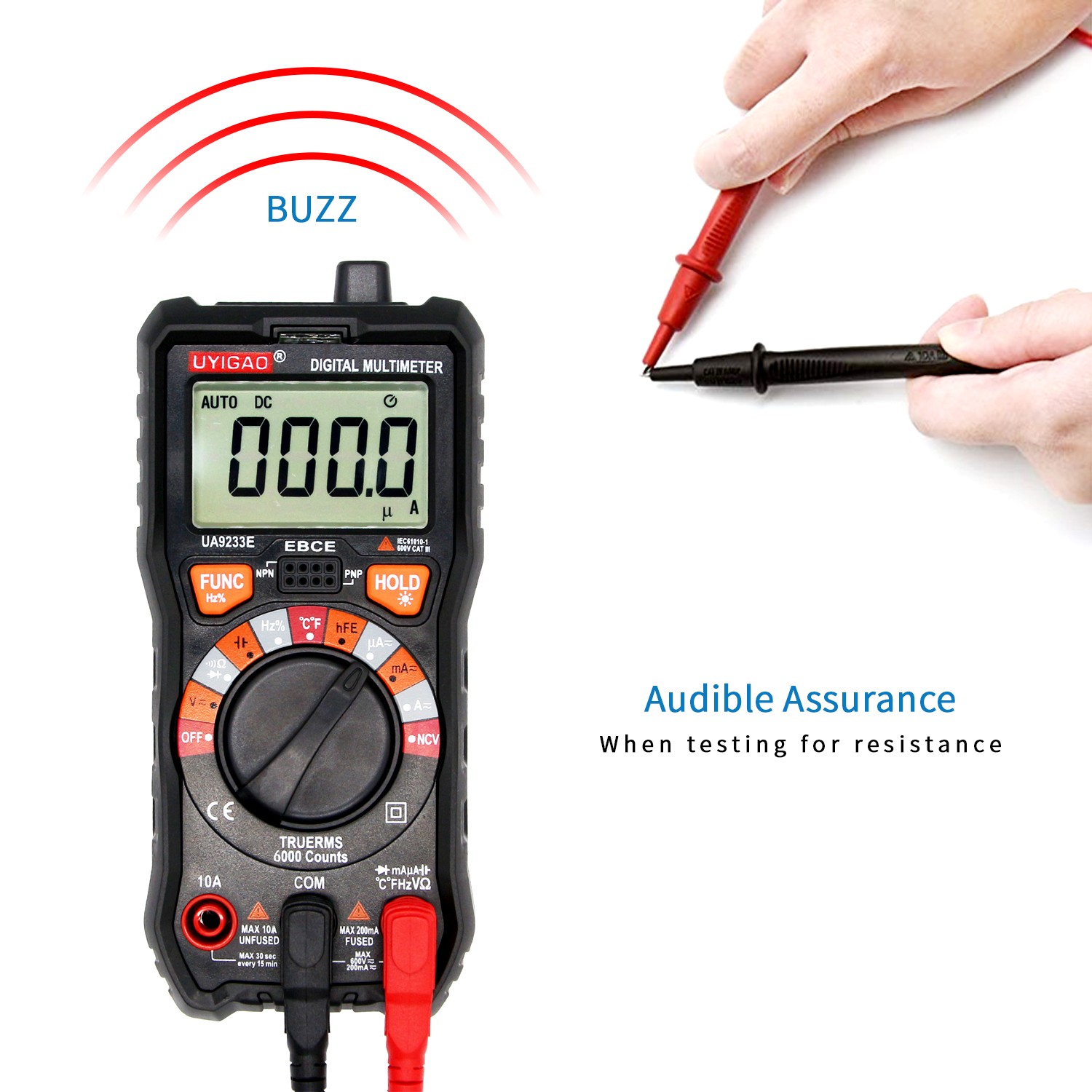

Diode testing
Triode testing
 V
Low battery display V
Data Hold/TRMS/NCVV
Automatic turn-0ffV
Function protectionV
Automatic resettable fuseV
BacklightV
Self recovered SafetyV
Operation mode Auto range
Maximum display 5999
Weight266g, 140 x 68 x 49mm
Power9V battery (6F22) NOT including by air freight.
