Vibrometer Tester Gauge Analyzer Measure sensitivity accelerometers Digital Vibration Meter
Vibrometer Tester Gauge Analyzer Measure sensitivity accelerometers Digital Vibration Meter

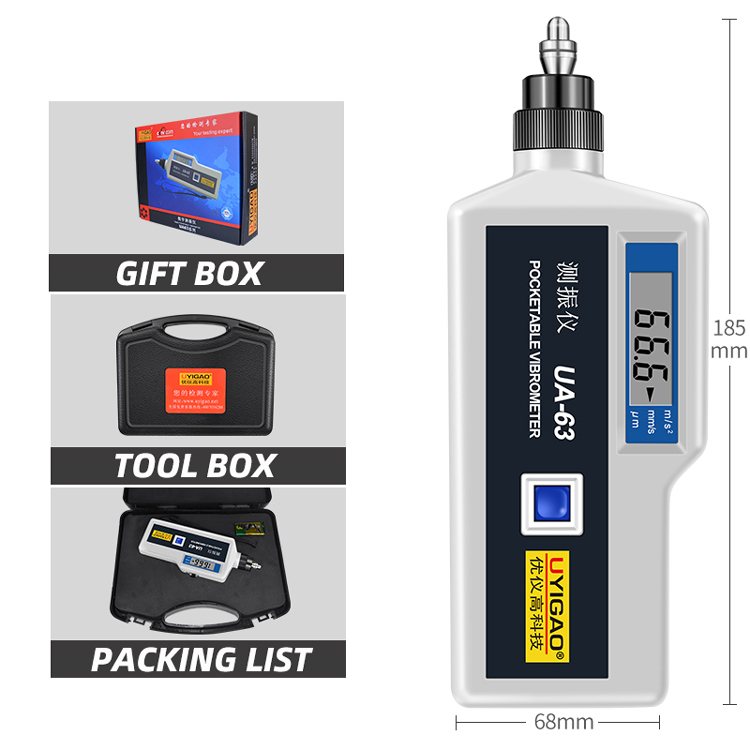

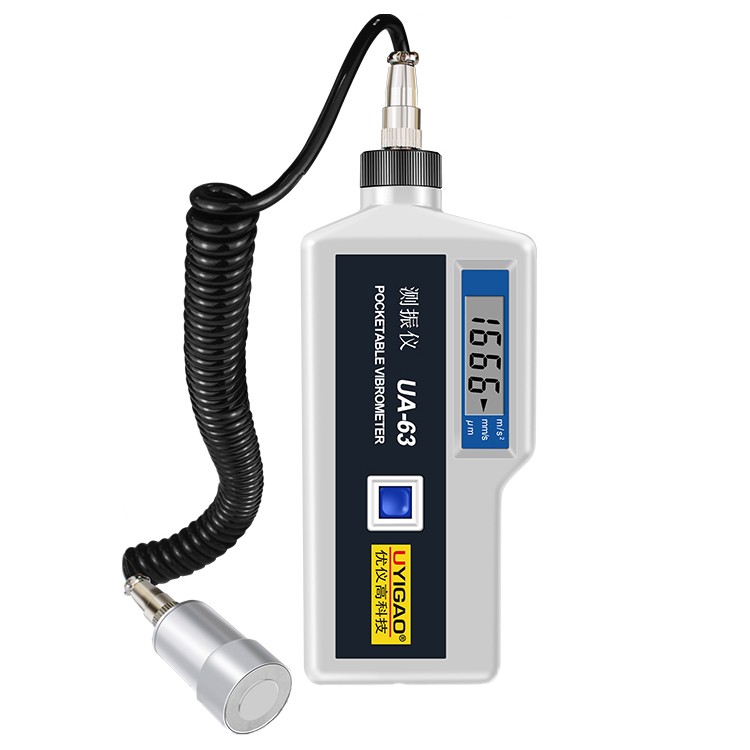

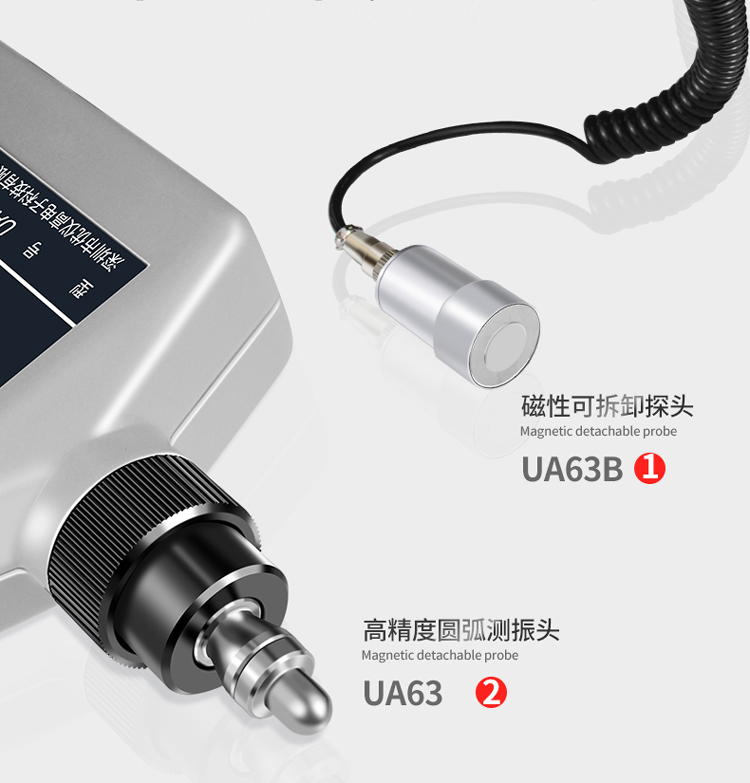

Model: UA63 Vibration Meter with probe and this is split type vibration
Product model: UA63
Mode of operation: automatic range
Product name: vibration meter UA63

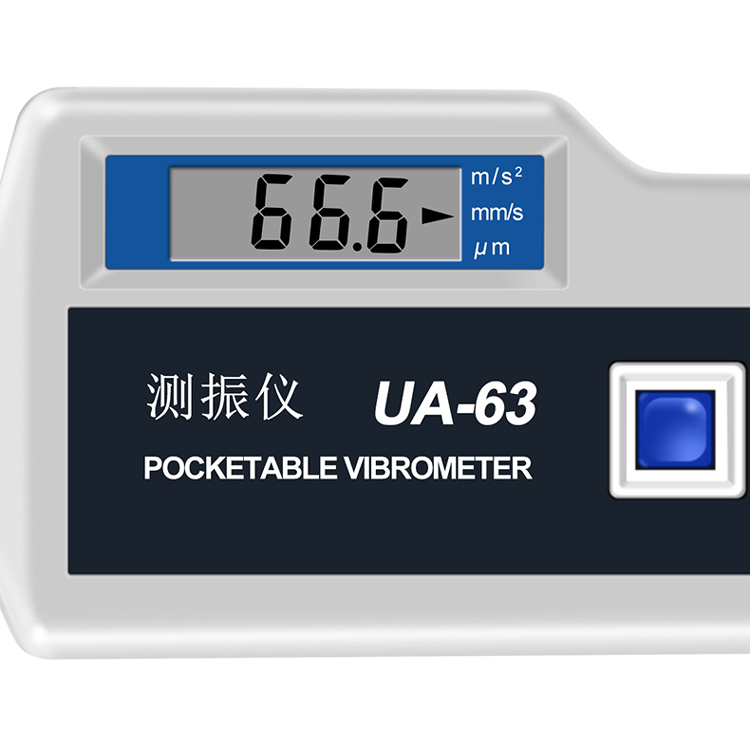

Display: 3 1/2
Product categories: vibration
Size: handheld
| Basic functions | |
| Vibration displacement (P-P) | 0-1999μm |
| Vibration velocity(RMS) | 0-199.9mm/s |
| Vibration acceleration(O-P) | 0-199.9m/s |
| Range of frequency response and amplitude deviation | |
| Vibration displacement(P-P) | 10-200Hz, ≤±10% |
| Vibration velocity (RMS) | 10 to 500Hz, ≤±10% |
| Vibration acceleration (O-P) | 10 to 1000Hz, ≤±10% |
| Amplitude linearity deviation | |
| Vibration displacement(P-P) | 0-20μm, ≤±10% |
| ≥20μm, ≤±5% | |
| Vibration velocity(RMS) | 0-2.0mm/s, ≤±10% |
| >2.0mm/s,≤±5% | |
| Vibration acceleration (O-P) | 0-2.0m/s,≤±10% |
| >2.0m/s, ≤±5% | |
| Special features | |
| Low battery display | battery voltage is lower than 5.5V, LCD displays low battery symbol replaced the battery |
| Data hold time | when you release the measure key and the data can be kept for a minute |
| Value fluctuation | Value indicating the fluctuation is less than a resolution. |
| The use of the environment temperature | 0 to 40℃ |
| The use of environmental humidity | ≤80% |
| Atmospheric pressure | 75 to 106KPA |

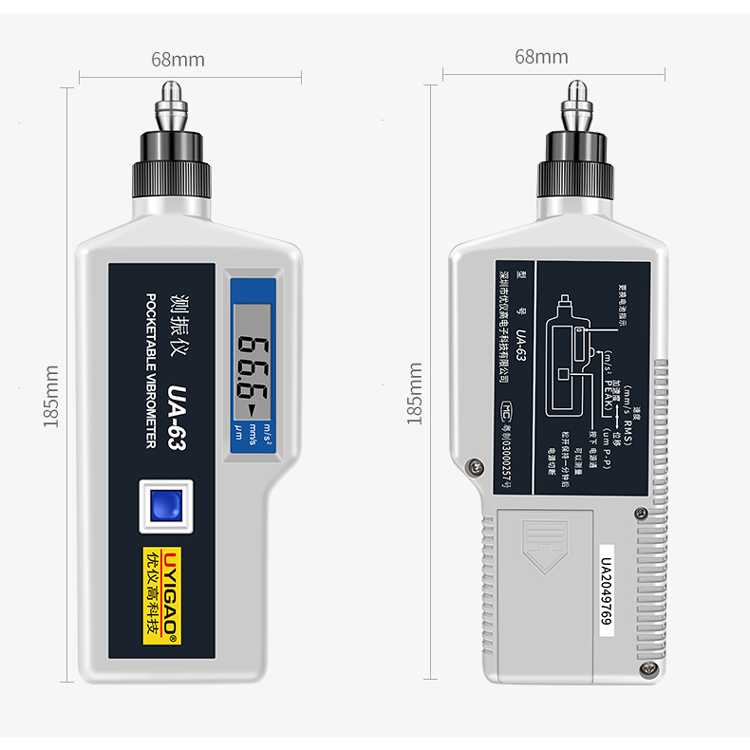

| Products size | 185x68x30mm |
| Product weight | 300g (include battery) |

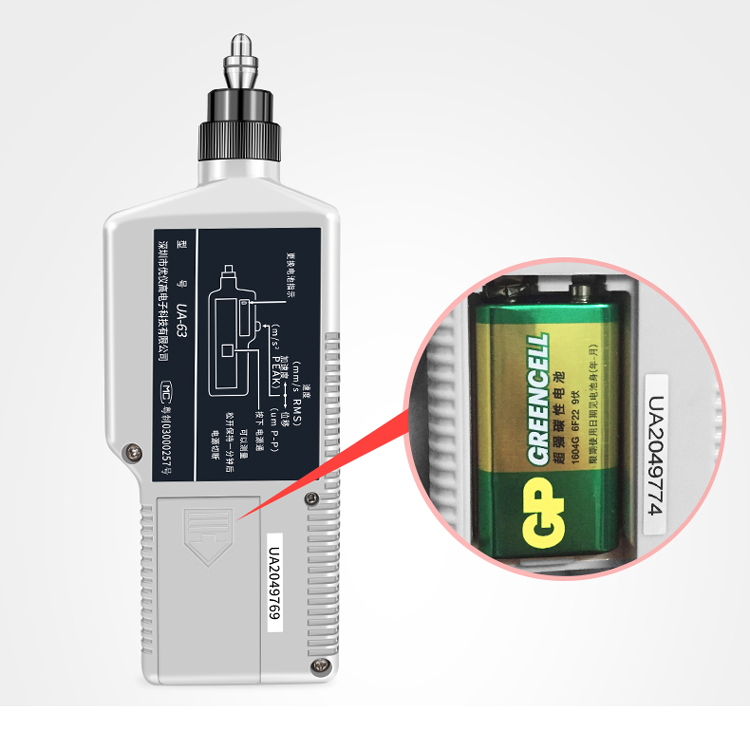

| Power supply | 9V (6F22) batteries |
